Pier Cap - PC01
| Rendering |

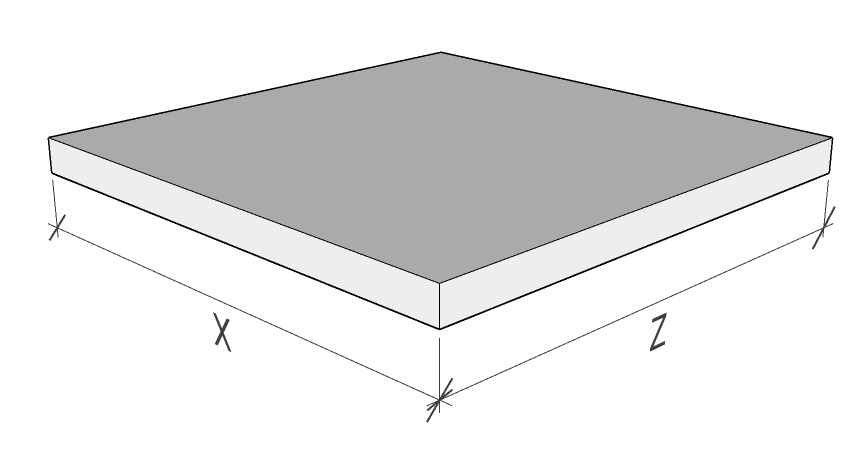

Isometric View |

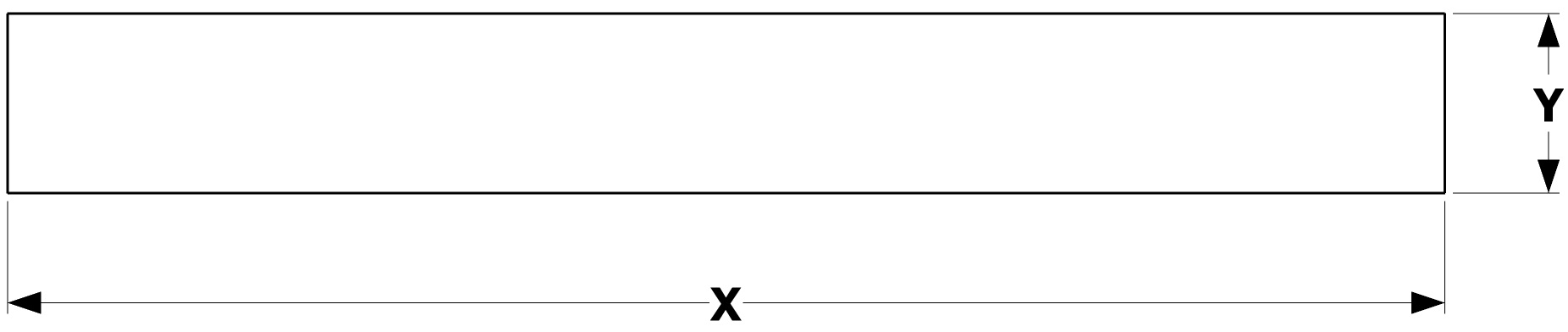

Profile View |

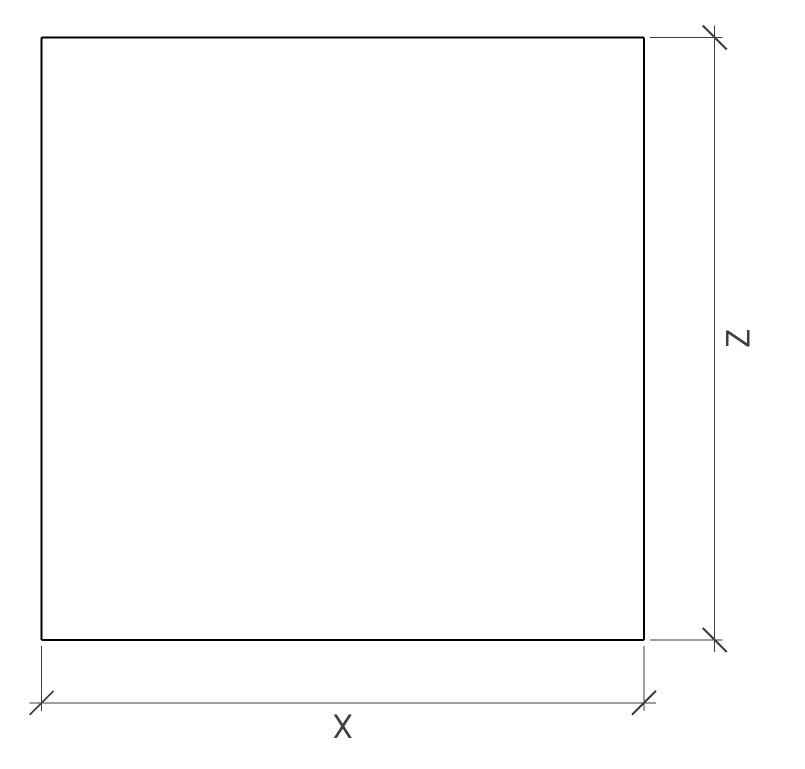

Top View |
 |
 |
 |
 |
| X |
Y |
Z |
| 16" |
2" |
16" |
|
|
| 18" |
2" |
18" |
|
|
| 18" |
4" |
18" |
|
|
| 20" |
2" |
20" |
|
|
| 20" |
3" |
20" |
|
|
| 22" |
2" |
22" |
|
|
| 22" |
4" |
22" |
|
|
| 24" |
2" |
24" |
|
|
| 24" |
3" |
24" |
|
|
| 24" |
4" |
24" |
|
|
| 26" |
2" |
26" |
|
|
| 27" |
2" |
27" |
|
|
| 27" |
4" |
27" |
|
|
| 27" |
6" |
27" |
|
|
| 28" |
2" |
28" |
|
|
| 28" |
4" |
28" |
|
|
| 30" |
2" |
30" |
|
|
| 30" |
4" |
30" |
|
|
| 32" |
2" |
32" |
|
|
| 32" |
4" |
32" |
|
|
| 34" |
4" |
34" |
|
|
| 36" |
2" |
36" |
|
|
| 36" |
4" |
36" |
|
|
| 38" |
3" |
38" |
|
|
| 41" |
4" |
41" |
|
|
| 48" |
4" |
48" |
|
|
PC1 R Rectangle Sizes
| X |
Y |
Z |
| 13" |
4" |
16" |
|
|
| 15" |
2" |
21" |
|
|
| 18" |
4" |
22" |
|
|
| 18" |
4" |
26" |
|
|
| 18" |
4" |
36" |
|
|
| 20" |
4" |
28" |
|
|
| 24" |
2" |
27" |
|
|
| 24" |
4" |
32" |
|
|
| 24" |
2.5" |
36" |
|
|
| 24" |
3" |
48" |
|
|
| 26" |
4" |
28" |
|
|
| 26" |
2" |
32" |
|
|
| 28" |
4" |
30" |
|
|
| 40" |
3" |
48" |
|
|
| 44" |
6" |
50" |
|
|
