Pier Cap - PC12

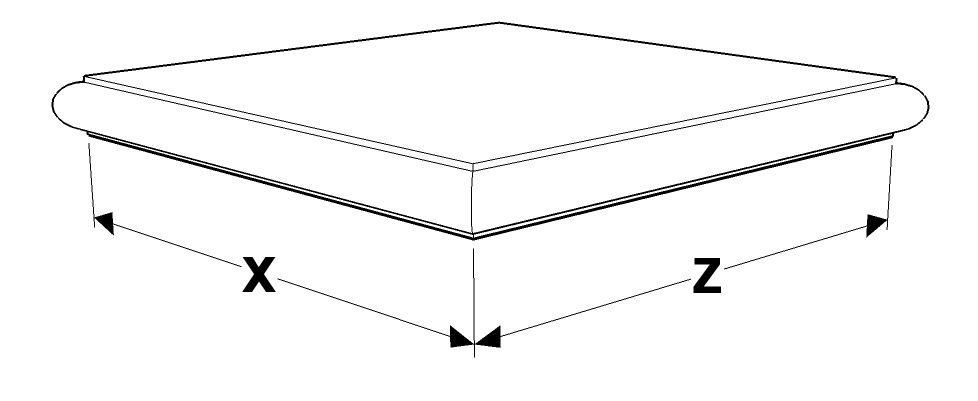

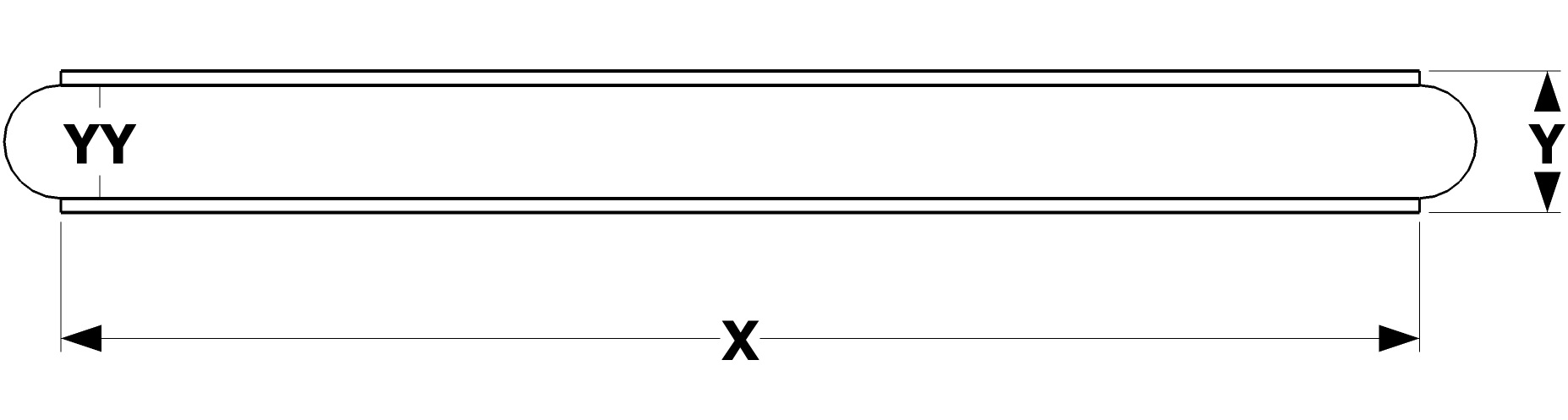

| Rendering | Isometric View | Profile View | |
|---|---|---|---|
 |
 |
 |
|
| Rendering | Isometric View | Profile View | |
|---|---|---|---|
|
|
|
|
| X | Y | Z | YY | ||
|---|---|---|---|---|---|
| 16" | 2 1/2" | 16" | 2" | ||
| 18" | 2 1/2" | 18" | 2" | ||
| 20" | 2 1/2" | 20" | 2" | ||
| 22" | 2 1/2" | 22" | 2" | ||
| 24" | 2 1/2" | 24" | 2" | ||
| 26" | 2 1/2" | 26" | 2" | ||
| 30" | 2 1/2" | 30" | 2" | ||
| 32" | 2 1/2" | 32" | 2" | ||
| 21" | 2" | 21" | 1 1/2" | ||
| 14" | 3" | 14" | 2" | ||
| 28" | 3" | 28" | 2" | ||
| 34" | 3 1/4" | 34" | 2" | ||
| 26" | 3 1/2" | 26" | 3" | ||
| 32" | 3 1/2" | 32" | 3" | ||
| 10" | 2 1/2" | 16" | 2" | ||
| 12" | 2 1/2" | 16" | 2" | ||
